What is a Fan Belt?
A fan belt is a critical component in most internal combustion engine vehicles. It is a flexible rubber belt with teeth or ribs on its inner surface that runs around various pulleys connected to engine components. The belt is looped around these pulleys in a specific pattern to transfer mechanical power from the engine's crankshaft to operate components such as the alternator, water pump, power steering pump, and air conditioning compressor.
Types of Fan Belts:
1. V-Belts: Traditional fan belts used to be V-shaped and made of rubber with a fabric reinforcement layer. They typically drive individual components such as the alternator or water pump.

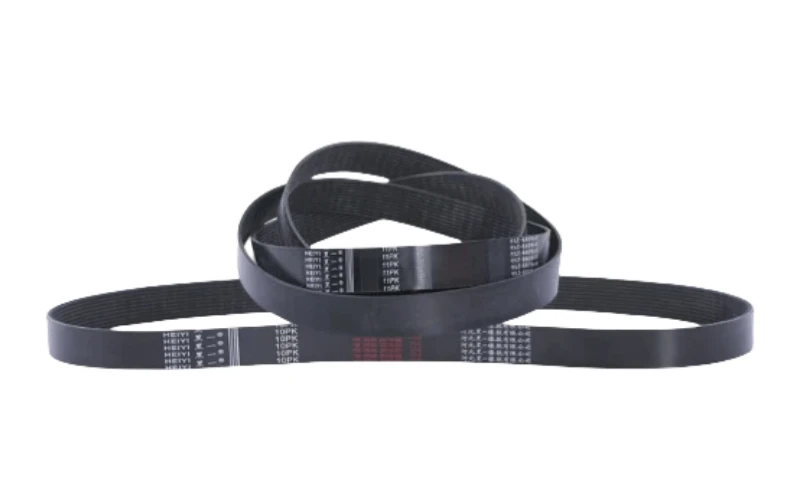

2. Serpentine Belts: Modern vehicles often use serpentine belts, which are flat and wider than V-belts. Serpentine belts wrap around multiple pulleys in a serpentine (snake-like) path, hence the name. They are more efficient at transferring power and can drive several components simultaneously, such as the alternator, water pump, power steering pump, and air conditioning compressor.
Importance and Functionality:
- Power Transmission: The primary function of the fan belt is to transfer mechanical power from the engine's crankshaft to various accessories and components needed for the vehicle's operation.
- Efficiency: Properly functioning fan belts ensure efficient operation of vehicle systems. Serpentine belts, in particular, reduce energy losses compared to older V-belt systems.
- Reliability: Fan belts are designed to withstand high temperatures and stress. However, they require regular inspection and maintenance to prevent wear and potential failure.
Signs of Fan Belt Problems:
1. Squealing Noise: When a fan belt starts to wear out or becomes loose, it may produce a high-pitched squealing noise. This noise typically occurs when the belt slips on the pulleys due to inadequate tension or because the belt material has hardened and lost its grip on the pulleys. The squealing sound is most noticeable during engine startup or acceleration, as these are times when the engine demands more power and the slipping is more pronounced.
- Causes: The primary causes of belt squealing include:
- Loose Belt: If the belt tension is insufficient, it won't grip the pulleys properly, leading to slipping.
- Worn Belt: Over time, the rubber material of the belt can wear down, becoming smooth and less able to maintain friction with the pulleys.
- Glazed Pulleys: If the pulleys become glazed due to excessive heat or wear, they can also contribute to belt slipping and squealing.
2. Visible Wear: Inspecting the fan belt visually is crucial for detecting signs of wear and potential failure.
- Fraying: Over time, the edges of the belt can fray, which weakens its structural integrity.
- Cracking: Belt material can develop cracks, especially in areas where it bends around pulleys.
- Glazing: If the belt has a shiny appearance, it may be glazed, which reduces its ability to grip the pulleys effectively.
- Missing Ribs: In the case of a serpentine belt, missing ribs indicate severe wear and impending failure.
Regularly inspecting the belt for these signs can help catch problems early before they lead to belt failure.
3. Belt Tension: Proper tension is critical for the fan belt to function effectively.
- Symptoms of Incorrect Tension:
- Looseness: A loose belt will visibly sag between pulleys and may feel slack to the touch.
- Belt Slippage: Excessive belt movement during operation indicates inadequate tension.
- Squealing: As mentioned, inadequate tension can cause the belt to slip on the pulleys, producing a squealing noise.
- Adjustment: Many vehicles have an automatic belt tensioner that maintains proper tension. If the belt tension is incorrect, it may need adjustment or the tensioner itself may need replacing.
4. Accessory Malfunctions: The fan belt drives critical engine components such as the alternator, water pump, power steering pump, and air conditioning compressor.
- Symptoms of Accessory Malfunction:
- Charging System Issues: A failing alternator due to a bad belt can lead to a discharged battery and electrical system problems.
- Cooling System Problems: If the water pump isn't functioning properly due to a bad belt, the engine can overheat.
- Power Steering Difficulty: Loss of power steering assist can occur if the power steering pump is affected by a bad belt.
- Air Conditioning Failure: The air conditioning compressor may fail to operate if the belt isn't turning it properly.
5. Engine Overheating: The water pump, which circulates coolant through the engine, is often driven by the fan belt. If the belt fails, the water pump stops working, leading to insufficient coolant circulation and potential engine overheating.
- Signs of Overheating: These include elevated engine temperature on the gauge, steam or coolant leaks under the hood, and dashboard warning lights indicating engine temperature issues.
6. Dashboard Warning Lights: Modern vehicles often have warning lights that indicate problems with the charging system or engine temperature.
- Charging System Warning: A failing alternator, often driven by the fan belt, can trigger a warning light indicating issues with battery charging.
- Coolant Temperature Warning: If the engine overheats due to a bad fan belt affecting the water pump, a dashboard warning light may alert you to this issue.
7. Belt Breakage: In severe cases of belt wear or improper tension, the belt can break entirely.
- Immediate Loss of Function: When the belt breaks, power transmission to critical engine components stops abruptly.
- Potential Damage: This sudden failure can lead to additional damage if the engine overheats or if other components are affected by the sudden loss of power.
Maintenance:
Regular inspection of the fan belt and timely replacement when signs of wear appear are crucial to prevent breakdowns and ensure the reliable operation of your vehicle. Most manufacturers recommend inspecting the belt during routine maintenance intervals and replacing it according to the vehicle's service schedule or sooner if signs of wear are detected.
By understanding the role and importance of the fan belt, vehicle owners can better maintain their vehicles and address issues promptly to avoid more significant problems down the road.
